What is acceptable voltage between neutral and earth?

Is voltage between neutral and earth normal or could there be a fault? A rule-of-thumb used by many in the industry is that Neutral to ground

Neutral to ground

Neutral is a circuit conductor that normally completes the circuit back to the source. Neutral is usually connected to ground (earth) at the main electrical panel, street drop, or meter, and also at the final step-down transformer of the supply.

› wiki › Ground_and_neutral

voltage of 2V or less at the receptacle is okay, while a few volts or more indicates overloading; 5V is seen as the upper limit.

What is maximum voltage between neutral and earth?

The voltage between the neutral and the earth should be less than 2 volts. If the voltage is more than 2 volts the electronic equipment starts malfunctioning.

What is the standard neutral-to-earth voltage?

Neutral-to-earth voltage (N-E), sometimes called “stray voltage,” is a condition that results when an electrical current flows through a neutral conductor. Most (110 volt) electric lines contain three wires- one “hot” or powered, one neutral and the ground wire.

Why voltage between neutral and earth is high?

Even when wiring is up to code, neutral-to-earth voltages may be sufficiently high to cause stray voltages. Many times, elevated neutral-to-earth voltages are caused by such things as: Faulty electrical equipment, Improper or faulty wiring, and.

How can we reduce voltage difference between neutral and earth?

Shortening the length of neutral wire and increasing the sectional area of neutral wire can reduce the reactance of neutral wire and thus reduce neutral-earth voltage.

Neutral-to-Earth Voltage (NEV)], NEC 2020, [ (44min:40sec)

Why do I have voltage on my neutral?

The voltage you are seeing on the neutral wire is conducting through that other load from the hot. Your voltage tester is detecting voltage without drawing current so the resistance of the other load is not seen. Try disconnecting/turning off all other loads on that circuit.

Why am I getting 120 volts on my neutral?

If you have a neutral wire removed from the neutral bus bar in your panel it is possible to see 120VAC on that wire if the circuit breaker for that circuit is turned on and there is a load connected to the circuit and load device is also turned on.

Why do I have 240V on neutral?

The grounded (neutral) conductor is connected to the center of the coil (center tap), which is why it provides half the voltage. Therefore, if a device requires only 240V, only two ungrounded (hot) conductors are required to supply the device.

How much stray voltage is too much?

As stated above, stray voltage at 1–2 mA may cause slight behavioral changes, but research has found that feed/water intake and milk production are not affected at these levels.

Why do I have voltage between neutral and ground UK?

It's normal. Induced voltage. When you pass a current through a wire, a (small) magnetic field is formed. Now if you run another wire alongside the first one, this magnetic field induces a much smaller current in the second wire,and an induced voltage appears across it.

What happens if you connect neutral to ground?

If the neutral breaks, then plugged in devices will cause the neutral to approach the "hot" voltage. Given a ground to neutral connection, this will cause the chassis of your device to be at the "hot" voltage, which is very dangerous.

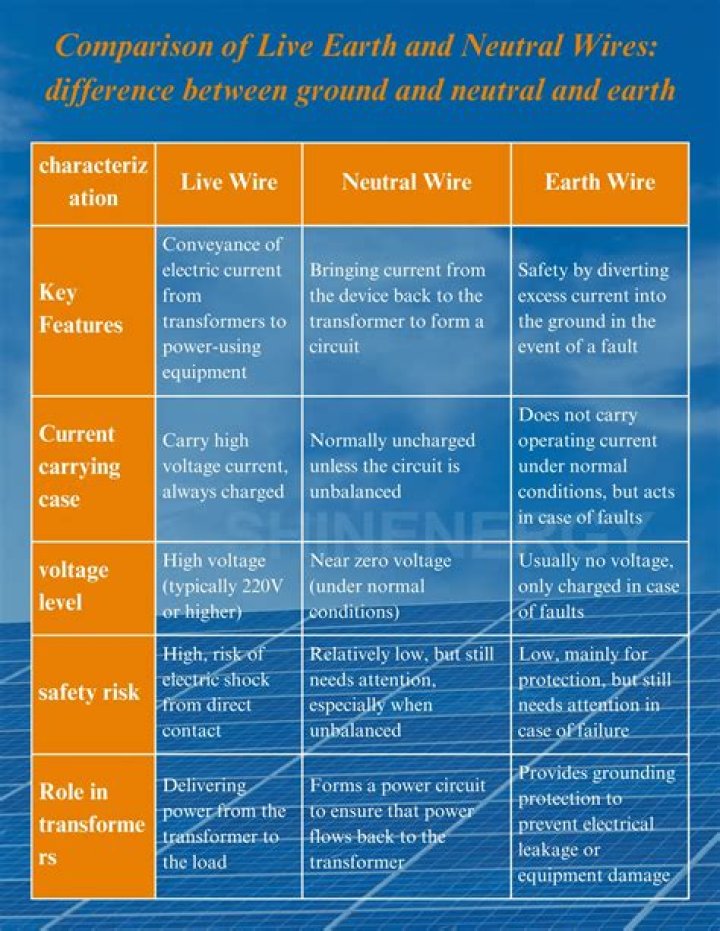

What is the potential difference between neutral and earth wire?

This carries the 230 V alternating potential difference from the power supply. The wire covered in blue plastic is the neutral wire and this completes the circuit from the appliance back to the supply. It is usually at 0 V. The wire covered in yellow and green plastic is the earth wire.

Why do I have 80 volts on my neutral?

Check voltage across each conductors. If you read 80V between the hot and neutral, and read 120V between the hot and ground. You have a malfunctioning neutral. If you read 80V between hot and both the neutral and ground your problem is with the hot conductor.

Why do I have voltage on my ground wire?

Stray voltage occurs when electricity leaks from the black wire directly to the white or ground wires. Small amounts of electricity are produced by these leaks. The system would be shorted by direct contact between the wires.

How much resistance is there between neutral and ground?

Ideally a ground should be of zero ohms resistance. There is not one standard ground resistance threshold that is recognized by all agencies. However, the NFPA and IEEE have recommended a ground resistance value of 5.0 ohms or less.

What is the voltage between earth and phase?

The voltage between phase and neutral is nominally 240V and the voltage of the phase or active conductor to earth is therefore also 240V (see Figure 7).

What happens if the live wire touches the neutral wire?

In an electric iron being used in a household, the plastic insulation of live wire and neutral wire in the connecting cable gets torn. Due to this, naked live wire touches the naked neutral wire directly and the electric fuse of the circuit blows off.

Should I get continuity between neutral and earth?

What it basically means is yes there will be continuity because your main earth is connected to the suppliers neutral. There should be no interconnection beyond this point though. An electrician can do much more with specialized testers, but the choice is ultimately yours.

Is it safe to connect neutral to earth?

Not safe and not legal. Earth and neutral can be connected together but not at the socket as it is outright dangerous may any wiring fault occur. If neutral wire gets disconnected anywhere, the enclosure of the device will be at live voltage. Neutral and earth are the same thing.

Can ground and neutral be on same bar?

The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

How do you check earthing with a multimeter?

How to Check Earthing at Home with Multimeter

1. In case of AC Power supply, keep the Pointer of the Multimeter at AC Value above 250 Volts. ...
2. Insert the Red Probe in the Positive Hole of the Socket (Right Home) and the Black Probe in the Negative Hole of the Socket (Left Hole).
3. Check and Note down the value.

How much stray voltage is safe?

It is recommended that actions be taken to reduce neutral to earth voltage when the NEV at the service entrance or between contact points is higher than the 2 to 4 volts range level. Unfortunately, there is no standard for stray voltage and this is only a recommended guideline from the U.S. Department of Agriculture.

How do I get rid of stray voltage?

If installed properly, an equipotential plane can reduce levels of stray voltage by keeping all surfaces that livestock touch at approximately the same electrical potential. This is done by installing a wire mesh in the floor and bonding it to the stall, water system and grounding system.

How do you check stray voltage?

WPS diagnoses the source of stray voltage by measuring the voltage at the primary and secondary neutral, and also by measuring the voltage drop between these two points. A remote ground rod is used as a reference.
