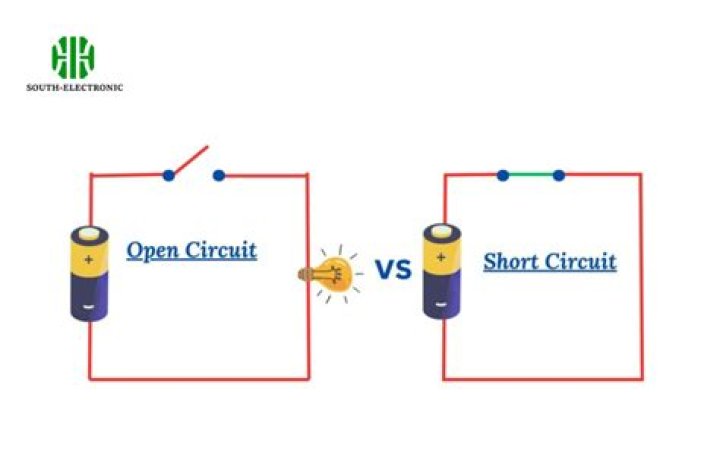

How many ohms is considered a short?

If there is a short directly across a voltage source, this can be a dangerous situation. The reason for this is that Ohm's Law states that current through a resistor is the voltage across the resistor divided by the resistance, I=V/R. In the case of a short, the resistance is typically considered to be zero.

How much resistance is in a short circuit?

A short circuit implies that the two terminals are externally connected with resistance R=0 , the same as an ideal wire. This means there is zero voltage difference for any current value.

How many ohms is considered an open circuit?

In an open circuit condition, the current is zero (I = 0). Hence, for any value of voltage, the resistance is infinite in open circuit conditions.

What is a high resistance short?

The higher the resistance, the lower the electrical current flow. If it is abnormally high resistance, conductors could be damaged with burning or corrosion. Conductors generally give off some heat, but if it's overheating, that is usually because of the resistance.

How many ohms is a closed circuit?

Resistance, symbolized by the (Ω) symbol and measured in Ohms, is a measurement of how well a current can travel through a circuit or a given path. A circuit with no resistance (0) would indicate a complete circuit, or one that has no short.

How to find a short in a modern car fast and easy (The correct way)

Does zero ohms mean no continuity?

To say there is no continuity means there is not a good electrical path. In other words, continuity means low or zero ohms, and no continuity means very high or infinite ohms.

How do you detect a short circuit?

The first step in finding a short circuit is to look for physical signs. This may include visible burns or melted metal on wires, burning smells, or flickering lights. Once you've identified a potential short, use your multimeter to confirm the voltage by placing it on its resistance or continuity setting.

What is a dead short?

A dead short is an electrical circuit that results in current flowing along an unintended path with no resistance or impedance. This results in an excessive current flowing through the circuit, which can damage equipment or cause electrical shocks to those nearby.

How much is too much resistance in a wire?

Ideally, the resistance should be 2000 Ω, but due to the existence of a wire, the measured resistance is 2000.01693 Ω, it's less than 10 parts per million higher, nearly undetectable.

How do you know if a resistor is shorted?

If its two terminals are connected to the same node, the resistor is short-circuited. In practical circuits, we might also say a resistor is short-circuited if a much lower value resistor is connected in parallel with it.

What does a short read on a multimeter?

Check the Display of the Multimeter

Beginning with the resistance mode, if you are seeing a value of 1 or OL, then there is a short circuit in your electrical circuit. As for the continuity mode, having a reading of 0 or close to 0 will show a short circuit.

What is a good continuity reading?

Understanding the Results. Know that a reading of 0 indicates perfect continuity. If your multimeter reads 0 ohms, it means that there is perfect continuity in the wire, fuse, battery, or device. Most multimeters will beep continuously when testing a connection with good or perfect continuity.

What is a good ohms reading?

A good set of test leads should normally measure about 00.1 Ohm (that is one tenth of 1 Ohm). With the probes still shorted, waggle the leads about and if the resistance changes significantly, they are faulty.

Is a short circuit high resistance?

In circuit analysis, a short circuit is defined as a connection between two nodes that forces them to be at the same voltage. In an 'ideal' short circuit, this means there is no resistance and thus no voltage drop across the connection. In real circuits, the result is a connection with almost no resistance.

What happens when resistance 0?

Resistance prevents current from flowing. If there's zero resistance, as in some kinds of short circuits, the current will flow in the wire without any losses. The basic rule is Ohm's Law: If is non-zero, and is zero, then the current will be infinite.

What is an example of a short circuit?

The definition of a short circuit is a connection on an electric circuit that allows a current to follow an unplanned or accidental path. An example of a short circuit is a storm damaging a power line and cutting off electricity.

How much resistance is normal?

Human resistance is about 10,000 ohms on the high side and as little as 1,000 ohms if the person is wet. Remember, ohms is the unit of measure of a material's resistance or impedance to current flow.

Do thinner wires have more resistance?

The relationship between resistance and wire length is proportional . The resistance of a thin wire is greater than the resistance of a thick wire because a thin wire has fewer electrons to carry the current. The relationship between resistance and the area of the cross section of a wire is inversely proportional .

What does a low ohm reading mean?

A low resistance measurement is typically a measurement below 1.000 ohm. At this level it is important to use test equipment that will minimize errors introduced by the test lead resistance and/or contact resistance between the probe and the material being tested.

What is the maximum resistance allowed for continuity?

The limit for the Earth Continuity Test is (0.1 + R)Ω. Where the 'R' value is the resistance of the protective conductor (earth wire) within the supply cable.

What is an infinite ohm reading?

When an ohmmeter points to the infinity symbol, it means that there is no continuity between the two test leads and that an open circuit is present.

What does OL mean for ohms?

OL stands for “open-loop” and indicates that there is a current flowing through the meter and the circuit. 0 stands for “shut-off” or “zero ohms” and indicates that there is no current flowing through the meter and the circuit.
