Do OEM wheels have offset?

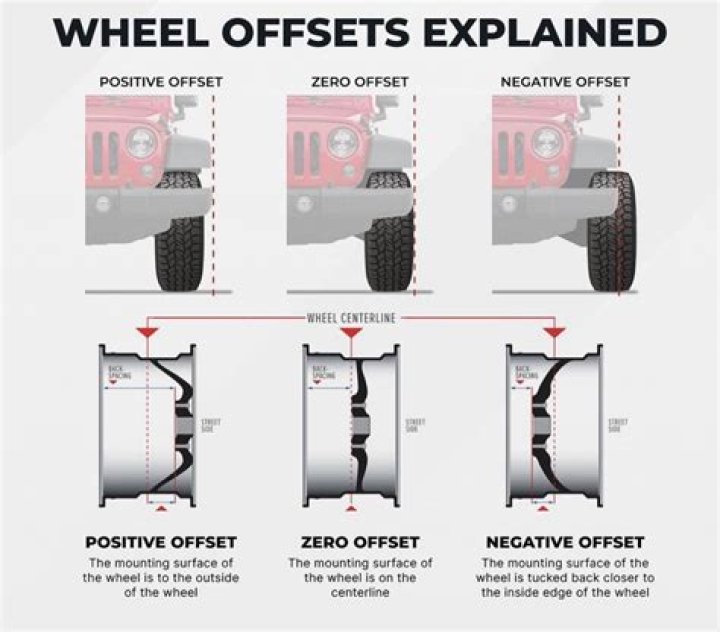

Most OEM wheels, and most wheels in general, will have a positive offset. Negative offset means the mounting plate is on the other side of the wheel's centerline, farther toward the suspension. Negative offset is generally seen in very deep-dish or deep convex aftermarket wheels.

How do I know if my wheels are offset?

Measure the distance from the floor to the straight edge and divide by two. That calculates the centerline of the wheel. If the centerline number is smaller than the hub measurement, offset is positive; if it is larger, offset is negative.

Why are OEM wheels better?

OEM Wheels are Higher-Quality

Since aftermarket wheels won't perfectly fit the dimensions of a car, they can actually affect how your car drives and decrease the value of the vehicle. OEM wheels will help your car retain the value it had when it first left the dealership.

Are OEM rims better than aftermarket?

Aftermarket wheels are often made with cheaper materials for mass production. This leads to a far less quality product compared to OEM or replica wheels. Time and time again, aftermarket wheels have proven to be structurally inferior to their OEM wheel counterparts.

Are OEM wheels worth it?

Anything that you buy from the manufacturer is going to be more expensive. Just like taking your car to the dealership for repairs, it's going to cost more than if you took it to Joe's Garage. OEM wheels will cost more money, and they don't come in too many different styles.

What is Wheel Offset and Backspacing? ? Simplest Explanation Ever!

Is offset stamped on wheels?

Nearly every wheel has the offset stamped on it somewhere, usually ingraved on the wheel as a part of the wheel markings (e.g., 6½ J x 15 H2 5/112 ET39 - ET39 means 39mm offset) and its measurement unit is millimeter (mm). The wheel offset can have zero, positive or negative value.

How much is a offset on a wheel?

Offset is simply the distance from the hub mounting surface to the center of the wheel. In other words, Offset = Measured Backspace – Calculated Wheel Center Distance. In this example, we already know that our Measured Backspace = 5 3/16 inches.

How much wheel offset is acceptable?

Even if the tire and wheel have enough clearance, the wrong offset can decrease vehicle stability. Generally, with new wheels, you don't want the new offset to be more than 5 millimeters different from the old offset.

Does negative offset stick out?

Negative Offset

The wheel will also stick out from the truck. Keep in mind that some states require fender flares to cover the width of the wheel and tire.

Will 5mm offset make a difference?

In summary, here are a few important points to remember about wheel offset. If the new wheels are the same width, the new offset should ideally be within 5mm of the old offset in either direction. If offset must be substantially different, avoid using more positive offset at all costs.

Does positive offset push wheels out?

You can see how a positive offset will tuck the assembly further under the fender, while a zero or negative offset pushes the wheel out towards or even past the fender.

Can you machine wheels to change offset?

Yes it's possible. If you want to increase the number of positive offset (ex. from +30 to +35), the back of each alloy wheel has to be machined down evenly using a special CNC machine. Note that not all offset changes can be achieved.

How do you find the offset of a tire?

First – add 1″ to the rim width and then divide by 2 to find the wheels center line (you have to account for the wheel flange which is why you add 1″ to the rim width). Second – convert the offset which is in millimeters into inches (there is 25.4 mm in 1 inch so divide the offset by 25.4).

How much offset is 2 inches?

Calculate the offset.

Then, subtract that number from the backspacing. For example, if the width I'd measured is 8 inches, my wheel centerline should be at 4 inches. Then, if my backspacing is 6 inches, 6 inches minus 4 inches is 2 inches. The offset is 2 inches, or about 50 millimeters.

Does higher offset stick out more?

A simple way to understand offset, is the lower the offset, the more the wheel will stick out, likewise, the higher the offset, the more the wheel will tuck in.

What is better negative or positive offset?

If your offset is too positive, you risk the inside of the tire hitting your suspension. To fix this, bring the offset down, so it's closer to zero. This moves the tire out. If your offset is too negative, then the outside of the tire will rub on the car's body and fenders.

How far out does offset sit?

Ideally, the offset of the new wheels must not be more than 5 millimeters away in either direction of the old measurement. Too much negative offset may push the wheel too far out and cause an odd car aesthetic. Too much positive offset will push the wheel too much into the suspension.

Does wheel offset affect ride quality?

Regardless though, offset does do more than just fill or not fill the fenders-it affects handling, steering, traction, even the service life of otherwise unbreakable suspension components like knuckle assemblies.

Are OEM wheels stronger?

They are significantly stronger than alloy and aftermarket wheels. These are recommended for powerful vehicles and cold regions with long winters. If you are tempted by the style and appearance of aftermarket wheels, consider OEM alloy wheels. Alloy wheels are more aesthetically pleasing and generally perform better.

What are factory OEM wheels?

Factory Original OEM Wheels: Wheels that come from the original vehicle manufacturer, are referred to as "OEM" or Original Equipment Manufacturer. These are the wheels that the vehicle manufacturer designed for their cars and trucks.

What is the difference between replica and OEM rims?

Original Equipment Manufacturer or OEM Wheels are made or caused to be made by the vehicle manufacturer with fitment specific to one or several of their vehicles. On the other hand, Replica rims are made by independent manufacturers to look and function as OEM rims.
